This article provides the following step-by-step guide for establishing the connection of ConnectWise Automate On-Premise to MSPbots.
Prerequisites
Ensure you have a new read-only account in your SQL Server or MySQL for communicating with MSPbots. You can refer to the article How to Create a Read-only Account for Your SQL Server or MySQL for guidance.
Setting up the ConnectWise Automate On-Premise integration with MSPbots
Use this integration setup option only if you are an advanced user with knowledge of SQL databases and scripts. For more information on connecting your software to MSPbots using API or SQL agent, refer to Reminders for Connecting to MSPbots via API or SQL Agent.

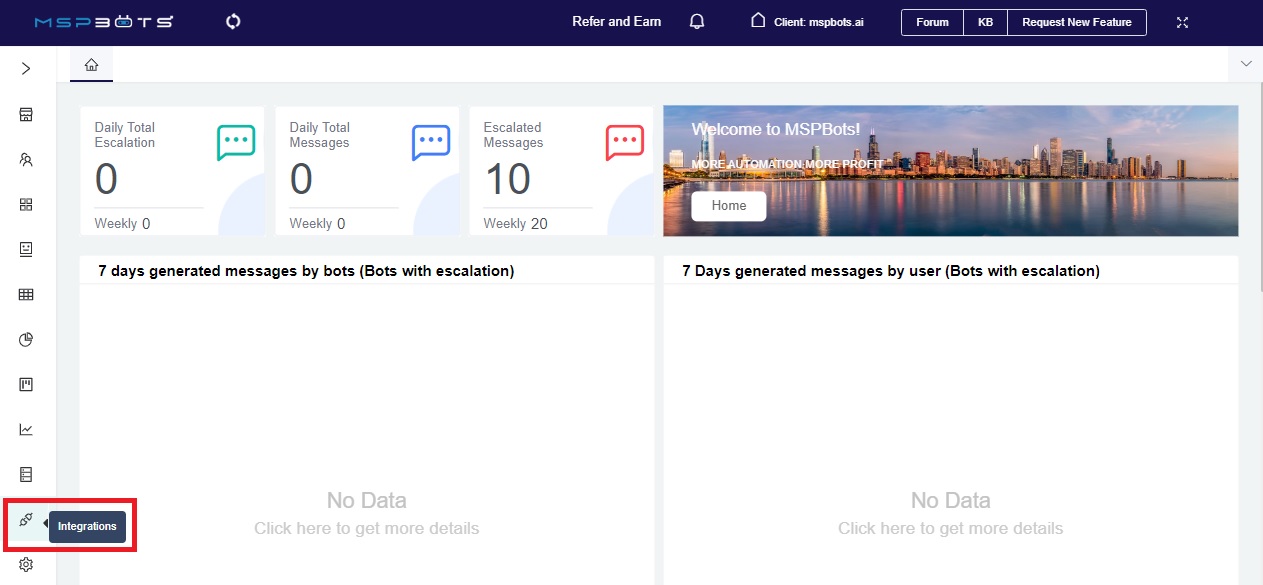

- Go to Integrations on the MSPbots app menu.
-
Find the ConnectWise Automate On-Premise and click the Config icon.
-
Next, click the download icon for the MSPbots SQL Agent Client to start downloading the installer file.
- When the download is complete, follow the prompts to install the MSPbots SQL Agent client.
-

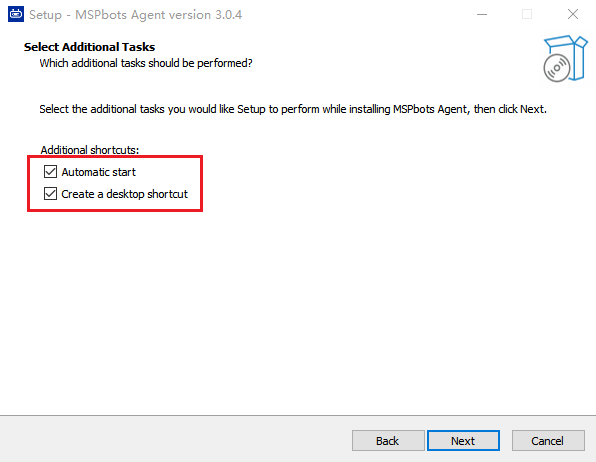

During the setup, select Automatic Start and Create a desktop shortcut, then click Next.
-

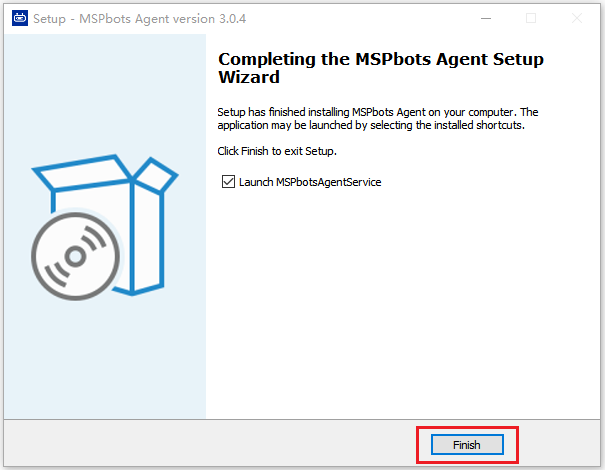

In the last step, select the Launch MSPbotsAgentService checkbox and click Finish. The window will automatically close when the service starts.
-

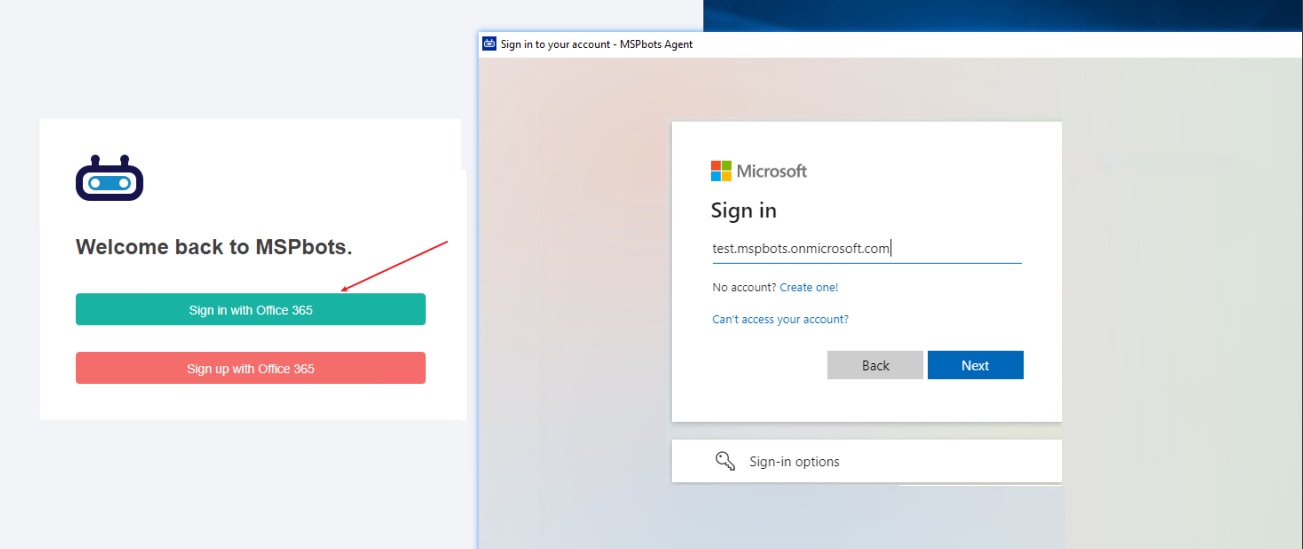

Launch the MSPbots agent and log in using your MSPbots account. You can minimize or close the window after login but do not log out.
Setting up the MSPbots Agent Connector
- Go to Integrations on the MSPbots app menu.
-

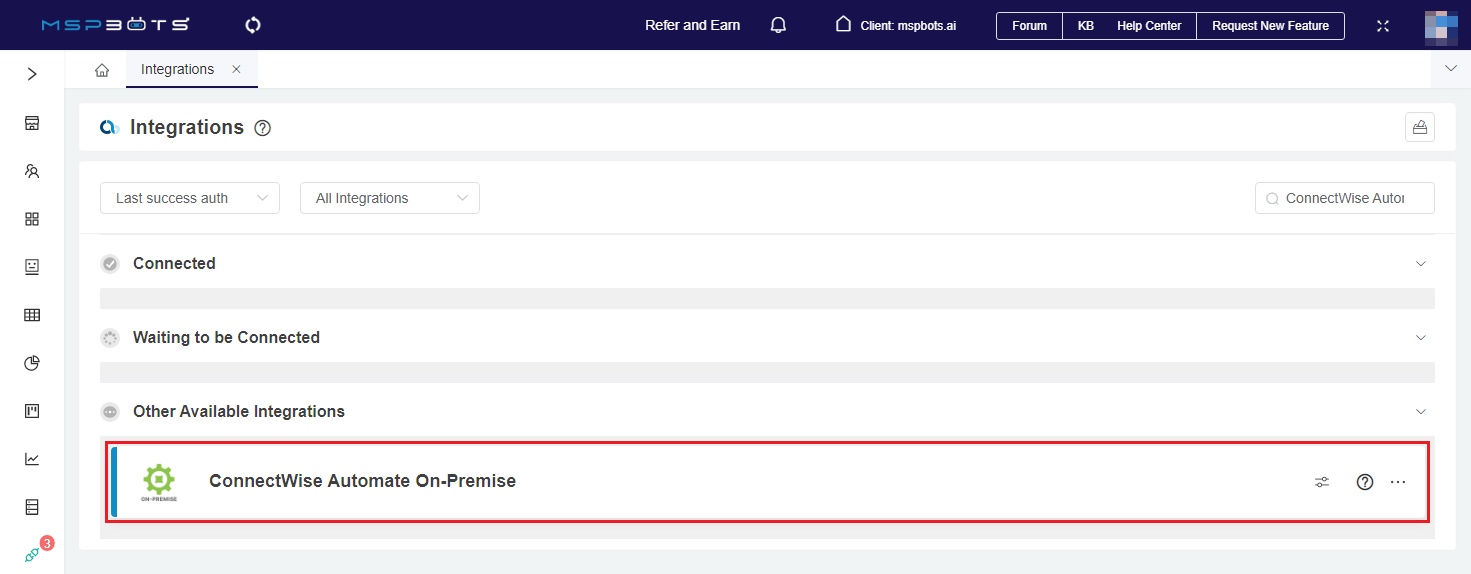

Search for ConnectWise Automate On-Premise and click it to open the connection settings.
-

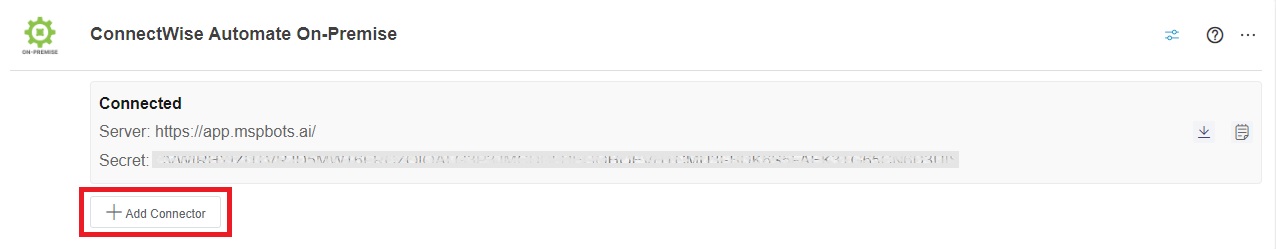

Click the +Add Connector button.

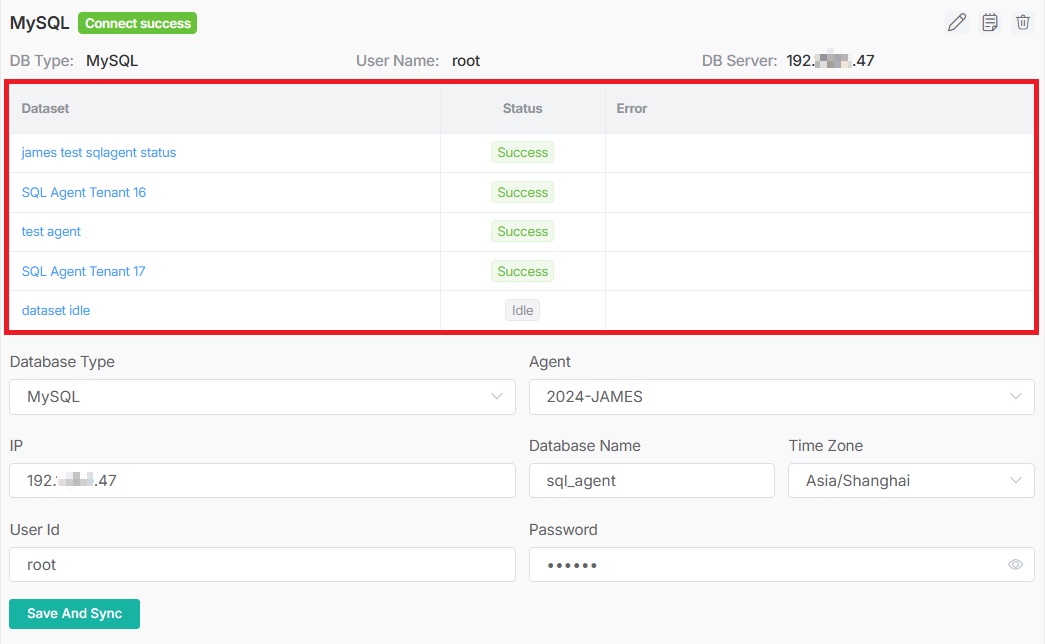

The last success auth shows the last time when the MSPbots Agent successfully pulled the database configuration information. This process is set to occur every 5 minutes by default.
-

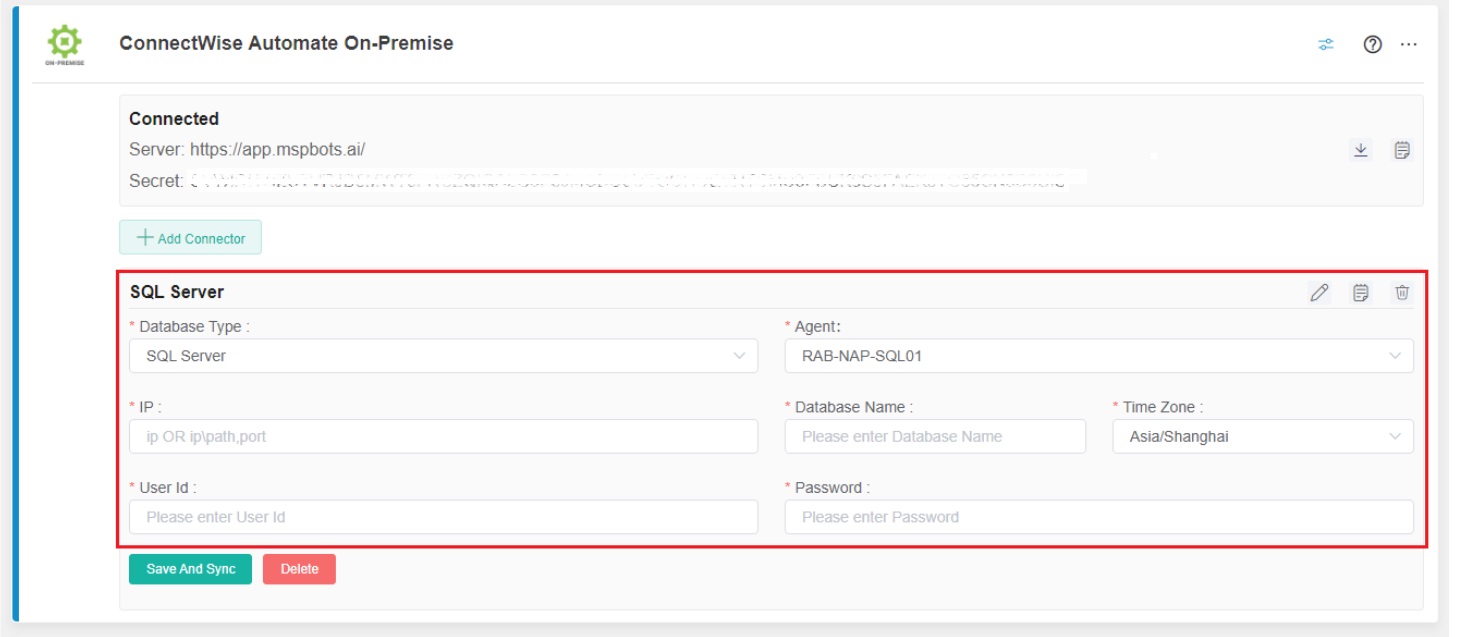

Fill in the following required fields.
- Database Type - Select either SQL Server or MySQL.
- Agent - This field is populated automatically with the name of the installed machine.
- IP - Provide the internal IP address or FQDN of the SQL or MySQL server.
- Database Name
- Time Zone - Select the time zone used by the connected database.
- User ID - This is the username of the user with read-only access to the database.
-
Password - This is the password of the user with read-only access to the database.
The agent may take a few moments to check in after installation.
If you have installed multiple MSPbots agents with different databases in different network segments, you have to select the device name where you manually installed the MSPbots Agent. You can find the device name in the Agent selection box. Select the one under the corresponding gateway of the database.
- Click Save and Sync.
Creating a dataset and validating the data
-

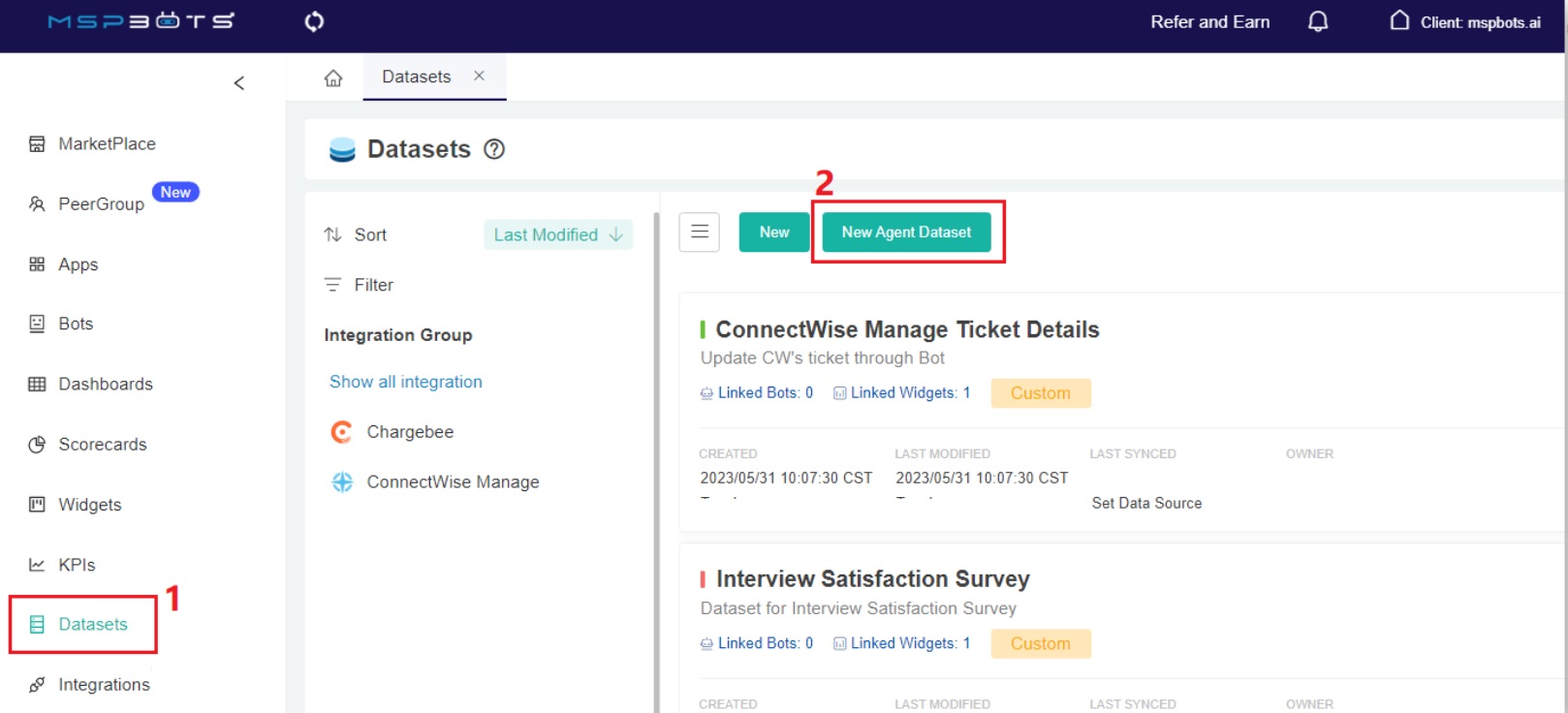

Go to Datasets on the MSPbots app menu and click the New Agent Dataset button.
-
When the New window appears, click Integration and select ConnectWise Automate On-Premise. Don't forget to fill in the dataset Name and Description fields.
-

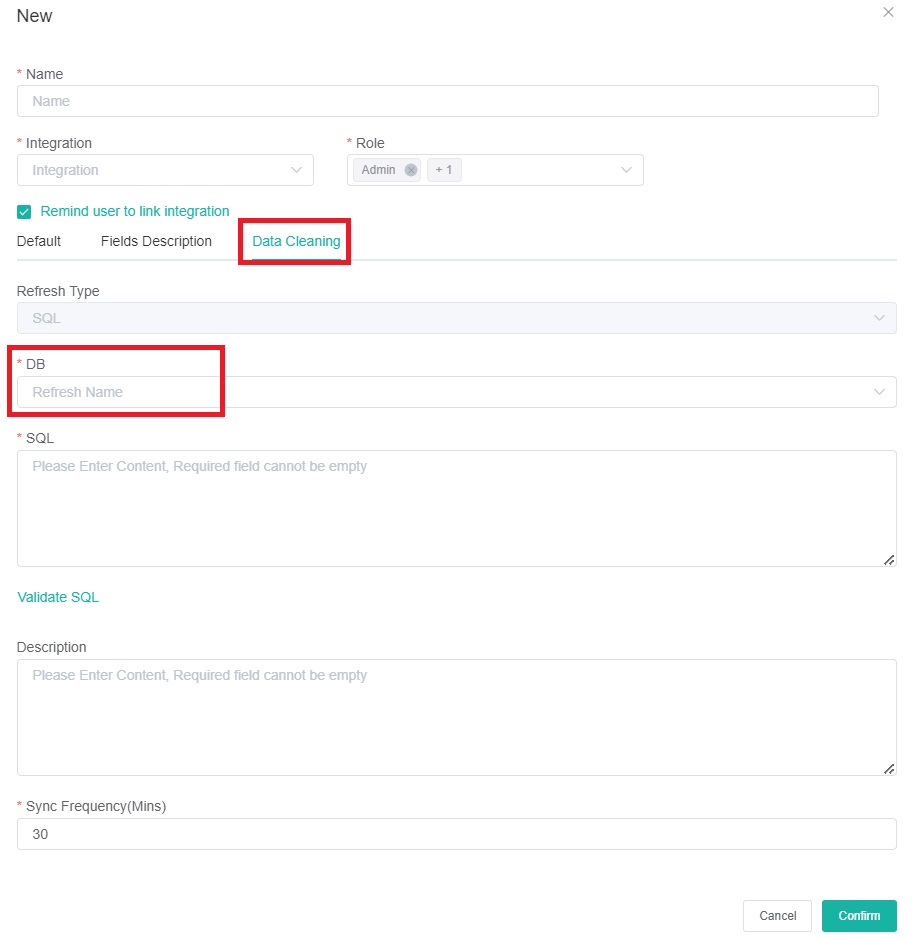

Next, go to the Data Cleaning tab to show the Validate SQL section below.
-
Select a database from the DB dropdown list.
-

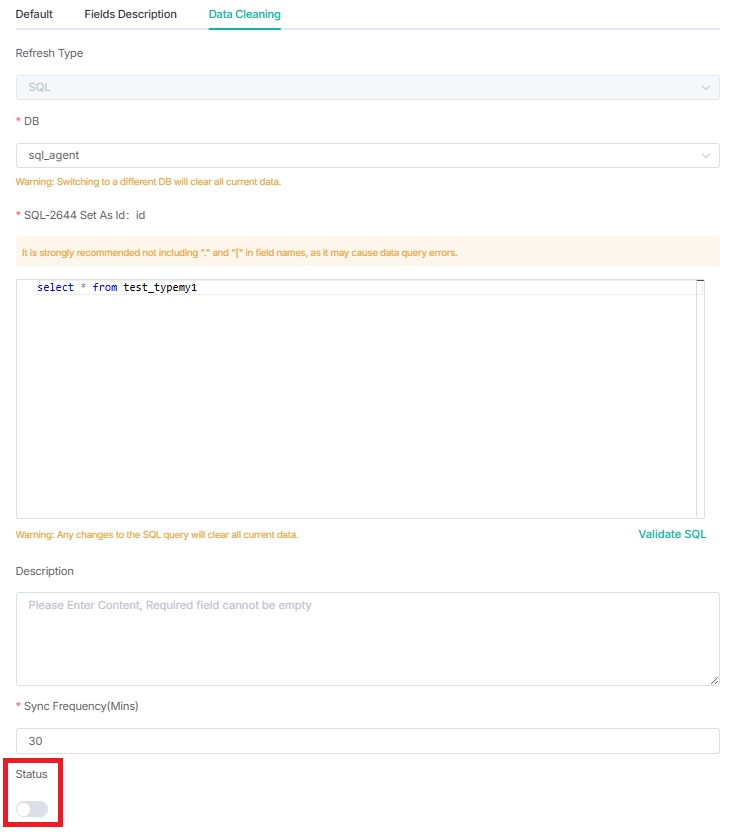

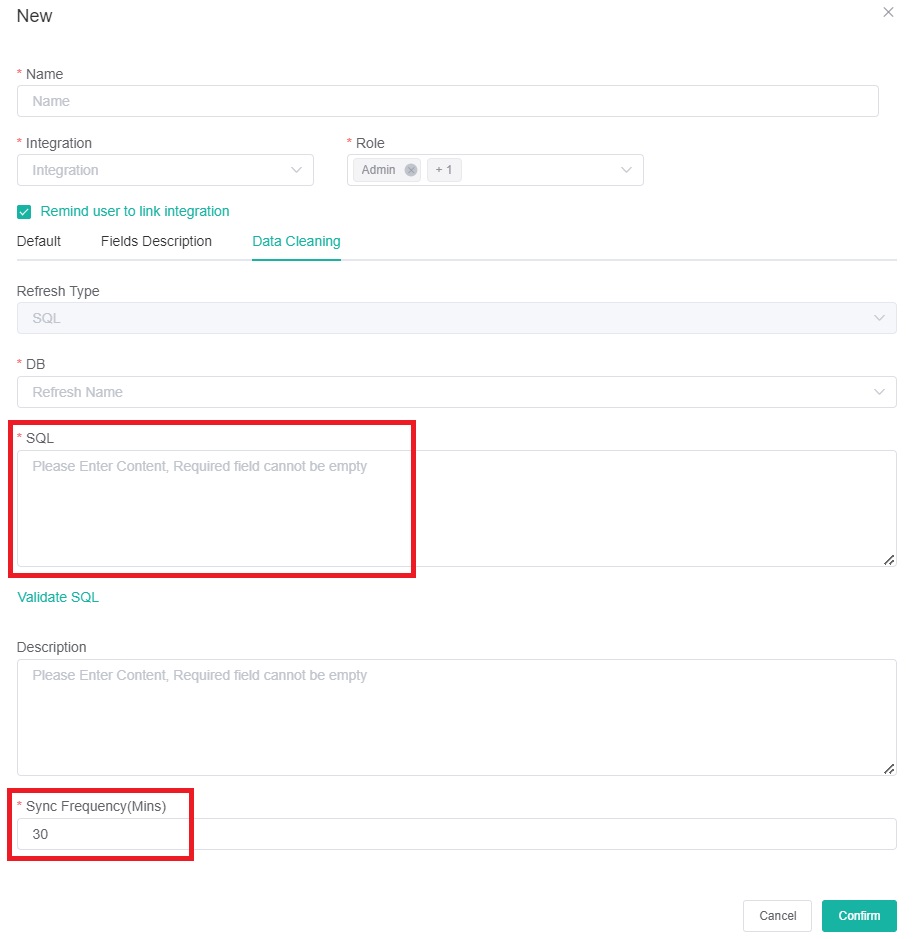

Scroll down to the Validate SQL section and fill in the SQL field. The most common SQL statement here is:
select * from TABLENAME
-
Input your desired Sync Frequency in minutes.
Sync Frequency is currently limited to 30 minutes and can only be decreased for smaller datasets. For larger datasets, the frequency may be limited due to a large amount of data ingestion and the constraints it would place on both your server and ours.
-
Click Confirm when done. This will show a preview of the data for your validation. You can customize or use the default character length for string-type fields, and the time field can be set with a timezone.
- Once you confirm the data is correct, click OK to create and save the dataset. The data will be synchronized in 10 minutes.
-
Select a database from the DB dropdown list.
Saving the logs and sending the file to the MSPbots Support Team
-

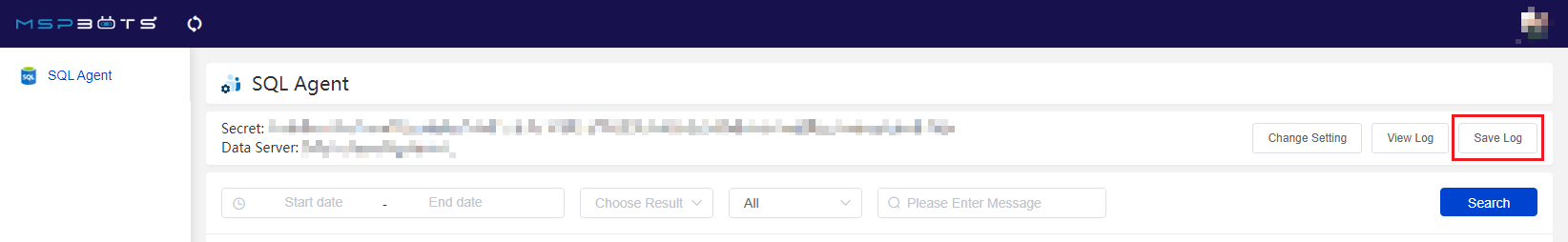

Open the MSPbots Agent client and click the Save Log button on the upper right corner of the window.
-

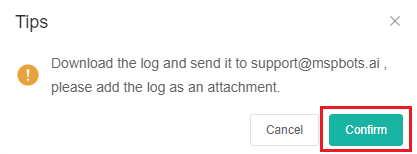

Click Confirm in the Tips pop-up window.
- Next, select the location to save the logs, provide a filename, and click Save.
- Send the file to support@mspbots.ai.
