Conditions and Formats Available for Creating Widgets

Updated

MSPbots has prebuilt widgets to help organize your reports on one page. If these widgets do not fit your requirements, you can create custom widgets and use the guide below in configuring datasets.

This article discusses the conditions and formats available when creating custom widgets.

Required permissions

Only users with admin privileges can create widgets.

Filter Conditions

The following are the available conditions when creating a filter in a widget.

No. Conditions Description
1 Is Empty Pulls data with a null value.
2 Is Not Empty Pulls data with a value.
3 Is Blank Pulls data with an empty string.
4 Is Not Blank Pulls data with a non-empty string.
5 Equals/Equal To/Equal Pulls data that is equal to only one specific value.
6 Not Equals/Not Equal To/Not Equal Pulls data that is not equal to one specific value.
7 Contains Pulls data where the field's value matches the input; functions like " ilike '%input%' ".
8 Not Contains Pulls data where the field's value does not match the input; functions like " not ilike '%input%' ".
9 Start With Pulls data where the first part of the field's value matches the input; functions like " ilike 'input%' ".
10 End With Pulls data where the last part of the field's value matches the input; functions like " ilike '%input' ".
11 Not Start With Pulls data where the first part of the field's value does not match the input.
12 Not End With Pulls data where the last part of the field's value does not match the input.
13 IN Pulls data that is equal to any value in the list; allows choosing a list of values.
14 Any

Pulls data that contains any value from the list; allows choosing a list of values.

  • An example scenario for using "Any" is as follows:
    In a dataset, there are multiple fields for company names, each corresponding to a value, such as company_name=Company A, company_name=Company B, company_name=Company C, company_name=Company D. When filtering such company name fields, the "Any" operator can be used.
  • An SQL example of "Any" is as follows:
    AND "company_name" = any (select unnest(array['company_D','company_C','company_B','company_A']))
  • Example of using "Any".
    company_name
    company_A
    company_B
    company_C
    company_D
15 Not IN

Pulls data that is not equal to any value in the list; allows choosing a list of values.
16 Any IN

Pulls data that contains any value from the list; allows choosing a list of values.

  • An example scenario for using "Any IN" is as follows:
    In a dataset, there is a field called companies, which stores a random number of company names connected by commas, such as companies=company_D, company_C, company_B, company_A. When filtering such a companies field, the "Any IN" operator can be used.
  • An SQL example of "Any IN" is as follows:
    AND select array_agg(_trim_row) from (select trim(both ' ' from unnest(string_to_array("companies", ','))) as _trim_row) as _trim_table)
    && array['company_D','company_C','company_B','company_A']
  • Example of using "Any IN".
    companies
    company_A,company_C,company_B
    company_A,company_D
    company_D,company_C,company_B
    company_B,company_C
17 Match Uses regular expression; functions similarly to "Contains".
18 Not Match Uses regular expression; functions similarly to "Not contains".
19 = Pulls data that is equal to only one specific value.
20 > Pulls data that is greater than only one specific value.
21 >= Pulls data greater than or equal to a specific value.
22 < Pulls data less than a specific value.
23 <= Pulls data less than or equal to a specific value.
24 != Pulls data that is not equal to one specific value.
25 Later Than Pulls data later than a specific value.
26 Earlier  Than Pulls data earlier than a specific value.
27 Less Than Pulls data less than a specific value.

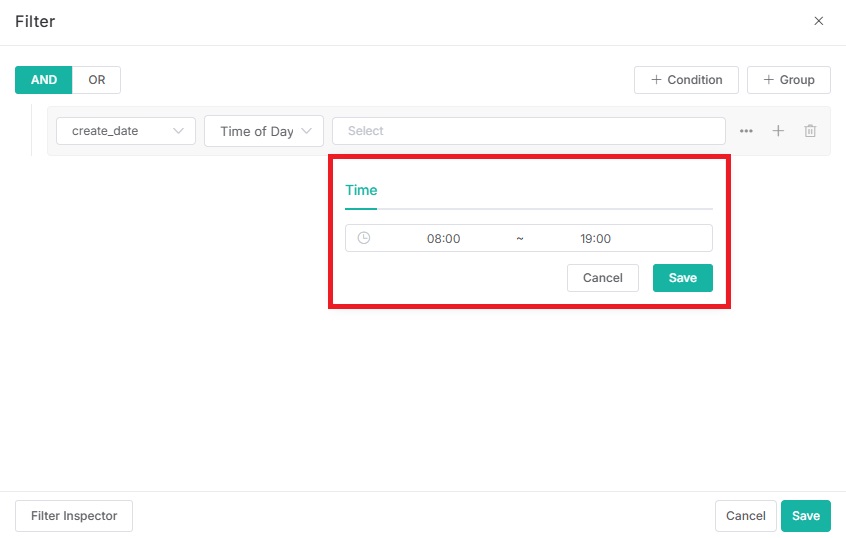

28 Time of Day

Pulls data within a specific time range each day.

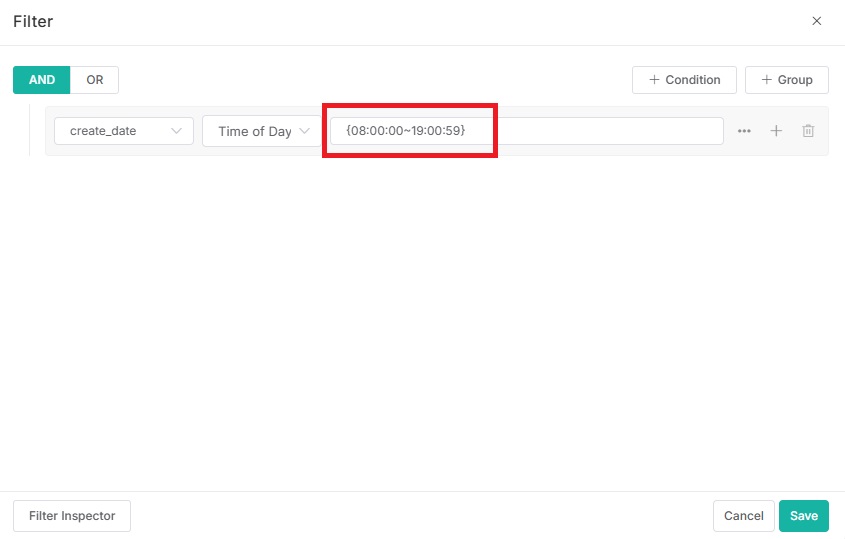

Set Start Time and End Time to specific minutes (e.g., 08:00 to 19:00), but the filtering will be accurate to the second (e.g., 08:00:00 to 19:00:59).

time of day_2.jpg

time of day.jpg
29 Between Pulls data between two points in time.





Date Variate

Select a variable date as the field value for filtering.

No. Category Name Description
1 Date attribute Last Refers to the past time. For example, if Last 2 Weeks (Mon-Sun) is set, it means the past two weeks' Mondays to Sundays, totaling 14 days. If Include this is checked, it includes the present day as well.
2 Next Refers to the upcoming time. For example, if Next 2 Weeks (Mon-Sun) is set, it means the next two weeks' Mondays to Sundays, totaling 14 days. If Include this is checked, it includes the present day as well.
3 Current  Refers to the present time.
4 Previous Refers to a specific time or period in the past. For example, if previous 2 Weeks (Mon-Sun) is set, it means the second week before, starting from Monday to Sunday, totaling 7 days.
5

Weeks >

  • Monday
  • Tuesday
  • Wednesday
  • Thursday
  • Friday
  • Saturday
  • Sunday

Select a day of the week. For example, if you select Monday, it means any time on Monday of each week.
6 Date unit BusinessDay Refers to working days, which may not necessarily be Monday to Friday. Some companies' working days include Saturdays.
7 Minutes -
8 Hours -
9 Days -
10 Weeks (Mon-Sun) A week from Monday to Sunday.
11 Weeks (Sun-Sat) A week from Sunday to Saturday.
12 Weeks (Sat-Fri) A week from Saturday to Friday.
13 Weekend Refers to Saturday and Sunday.
14 WeekDay Refers to Monday to Friday.
15 Months -
16 Quarter -
17 Years -
18 FinancialYear(QA) The specific day that marks the beginning of each financial year.
19 Include this XXX If this option is checked, pulling data will include the data for the current date.

date variate.jpg



Date

Select a date accurate to the second, starting from the year.


Slicer

  1. Select Slicer to configure it.

    Ignore this filter if the Slicer does not exist in the dashboard.

  2. Click the blank box to the right of Slicer.
  3. Select the filtering criteria from the Select dropdown menu.



    If the desired Slicer filter criteria are unavailable, click Advance to customize advanced filtering conditions.
    1. Enter the advanced conditions in the blank box.



      • If Ignore Filter is selected, the filtering conditions configured before the Slicer will be disregarded; only the Slicer will be effective.



Format Type and Display Type

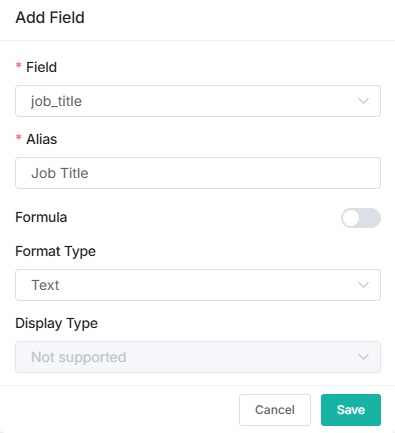

Text

Display data as text.

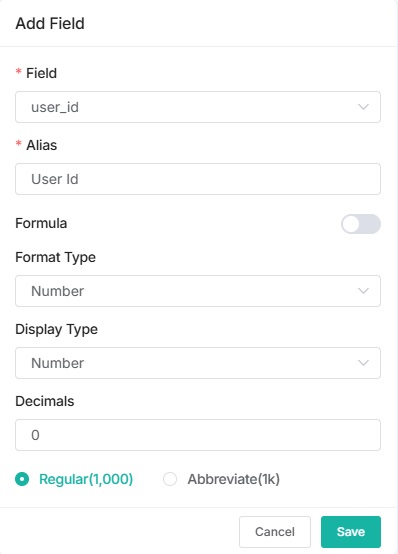

Number

Name Description Symbol
 Decimals Regular(1,000) vs. Abbreviate(1k)
Number Display data in number format. None Enter the number of decimal places. 0 represents an integer, such as 1; 1 represents one decimal place, such as 1.1; 2 represents two decimal places, such as 50.21%.
  • Regular(1,000) - Display numbers in a regular format. For example, if the number is 900 and Decimals is set to 0, it will display as 900.
  • Abbreviate(1k) - Display numbers in an abbreviated format. For example, if the number is 900 and Decimals is set to 1, it will display as 0.9k.
Percent Display data in percentage format. None None
Prefix

Add a prefix before the numbers, such as $.

 The symbol displayed before the value. For example, if you enter $, it will be displayed as $888.
  • Regular(1,000) - Display numbers in a regular format, including a currency symbol. For example, if the number is $900 and Decimals is set to 0, it will display as $900.
  • Abbreviate(1k) - Display numbers in an abbreviated format, including a currency symbol. For example, if the number is 900 and Decimals is set to 1, it will display as $0.9k.
Custom Customize the display format of the numbers. For example, if you want the numbers to show 3 decimal places, enter 0.000. None None None




Date

Name Description Example
MM-DD-YYYY Display dates as month-day-year. 01-31-2024
DD-MM-YYYY Display dates as day-month-year. 31-01-2024
YYYY-MM-DD Display dates as year-month-day. 2024-01-31
MM-DD-YY Display dates as month-day-year, showing only the last two digits of the year. 01-31-24
DD-MM-YY Display dates as day-month-year, showing only the last two digits of the year. 31-01-24
YY-MM-DD Display dates as year-month-day, showing only the last two digits of the year. 24-01-31
MM YYYY Display dates as month year. 01 2024
YYYY Display dates as year. 2024
MMM YYYY Display dates as month year, with the month displayed as a three-letter abbreviation of the English word, capitalized. Jan 2024

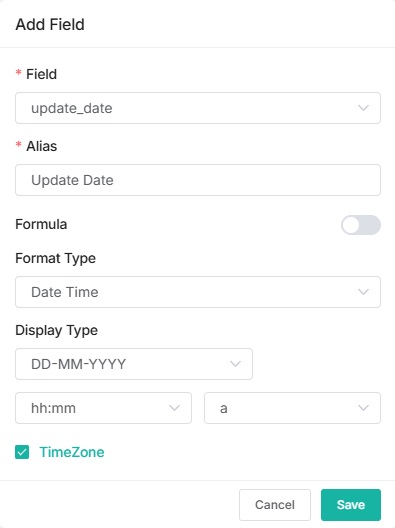

Date Time

Category Name Description Example
Date MM-DD-YYYY Display date as month-day-year. 01-31-2024
DD-MM-YYYY Display date as day-month-year. 31-01-2024
YYYY-MM-DD Display date as year-month-day. 2024-01-31
MM-DD-YY Display date as month-day-year, showing only the last two digits of the year. 01-31-24
DD-MM-YY Display date as day-month-year, showing only the last two digits of the year. 31-01-24
YY-MM-DD Display date as year-month-day, showing only the last two digits of the year. 24-01-31
MM YYYY Display date as month year. 01 2024
YYYY Display date as year. 2024
MMM YYYY Display dates as month year, with the month displayed as a three-letter abbreviation of the English word, capitalized. Jan 2024
Same as account setting Display dates according to the date format set in your Get Started settings.


 If your selected date format in Get Started is MM/DD/YYYY, then all dates in this widget will be displayed in the format MM-DD-YYYY.
NULL Do not display date. When the date time is 2024.01.31, 18:30:30, display it as 18:30:30.
Time HH:mm Display time as hours (in 24-hour format): minutes 18:30
HH:mm:ss Display time as hours (in 24-hour format): minutes: seconds 18:30:30
hh:mm Display time as hours (in 12-hour format): minutes 06:30
hh:mm:ss Display time as hours (in 12-hour format): minutes: seconds 06:30:30
NULL Do not display time. When the date time is 2024.01.31, 18:30:30, display it as 2024.01.31.
Time Indicators

 a When Time format is set to hh:mm and hh:mm:ss, this option will appear for configuration. Display lowercase am and pm after the time. 6:30:30 pm
A When Time format is set to hh:mm and hh:mm:ss, this option will appear for configuration. Display uppercase AM and PM after the time. 6:30:30 PM
NULL When Time format is set to hh:mm and hh:mm:ss, this option will appear for configuration. Do not display am, pm, AM, or PM after the time. If the time is 6:30:30 pm, do not display pm and display it as 6:30:30.
TimeZone If checked, it will display your time zone set in MSPbots, such as CST; if unchecked, it will not be displayed. 23-03-2023 11:10 am CST

Date Time.jpg

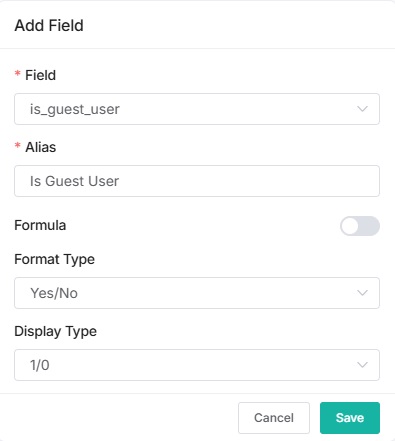

Yes/No

Name Description
1/0

Display data as 1/0, where 1 represents Yes and 0 represents No.
OK/NA Display data as OK/NA, where OK represents Yes and NA represents No.
On/Off

Display data as On/Off, where On represents Yes and Off represents No.
True/False Display data as True/False, where True represents Yes and False represents No.
Active/InActive Display data as Active/Inactive, where Active represents Yes and Inactive represents No.
Yes/No Display data as Yes/No.
Enable/Disable Display data as Enable/Disable, where Enable represents Yes and Disable represents No.

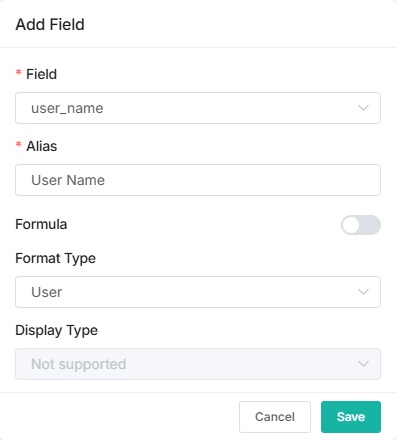

User

Display data as User.
It is generally recommended to set Format Type to User when the data format is email address. This way, when you use the widget in a bot, you can set the user name token, and the bot messages will be sent directly to all users without having to select each user individually.

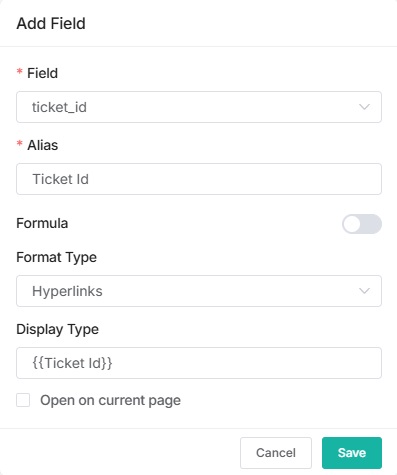

Hyperlinks

Display data as a hyperlink. Enter a link or select a token, for example, https://www.app.com/{{Task Id}}.
  • Open on current page - If checked, when you click the hyperlink, the link will open in the current page, overwriting the current page. If unchecked, the link will open in a new tab.
