The MSPbots dashboards have a share function that allows clients to present multiple dashboards in a loop on a screen. Called the Rotating Dashboard view, this function presents dashboards one after the other at specific intervals. When shown on a screen, the rotating view offers a way to display dashboards without user intervention. The presentation can be stopped and resumed when the user clicks the Stop and Play button.
Users can create multiple rotating dashboard views, which can be stored for future access or deleted when no longer needed.
What's on this page:
All MSPbots users can create Rotating Dashboard views if they have access to the desired dashboards. This also applies to displaying reports on external TVs with web browsers.
Creating and presenting dashboards using the Rotating Dashboard view
- Log in to the MSPbots app and navigate to Dashboards.
- Go to the My Dashboards tab and select a dashboard.

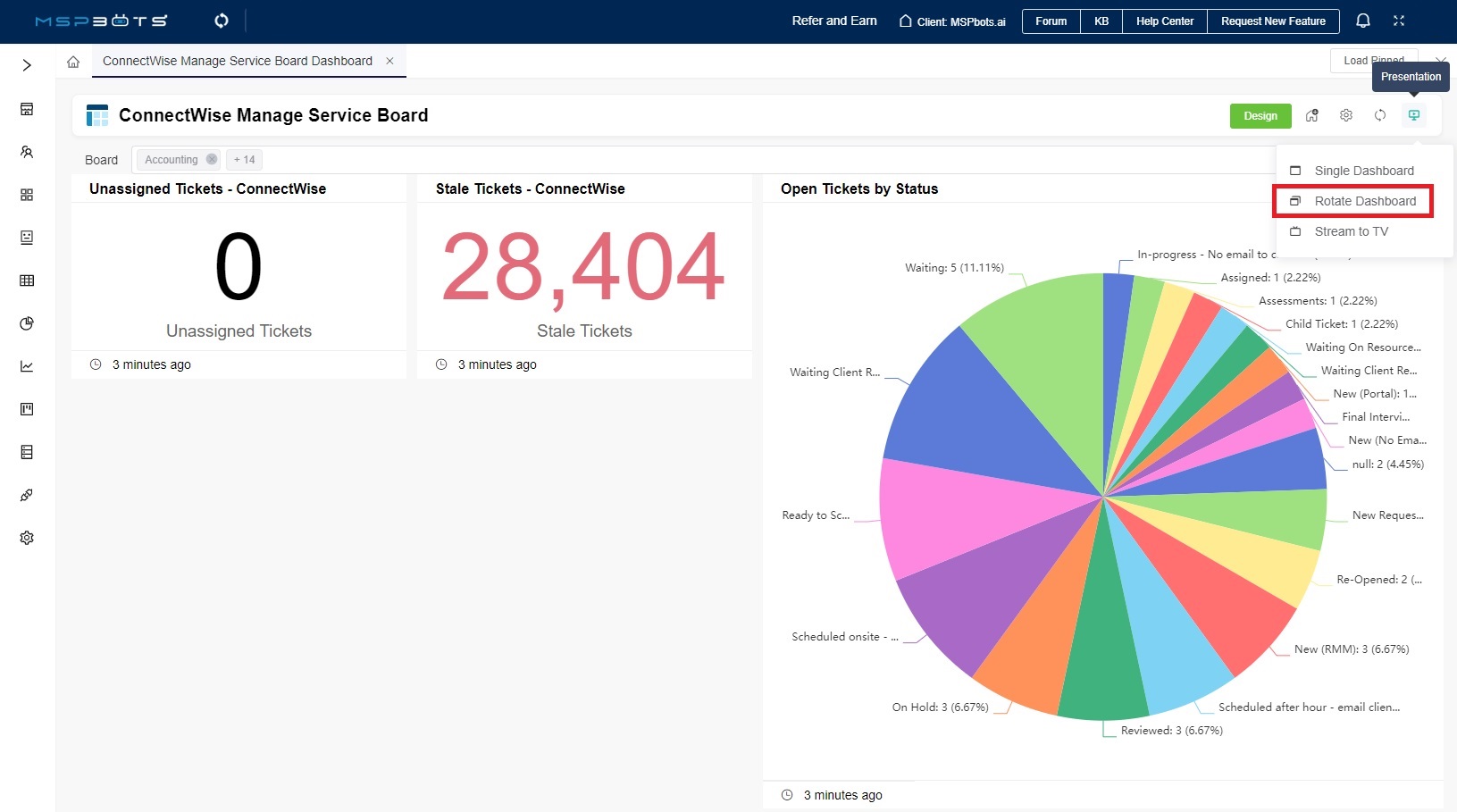

- When the selected dashboard opens, click the Presentation icon on the right and select Rotate Dashboard.

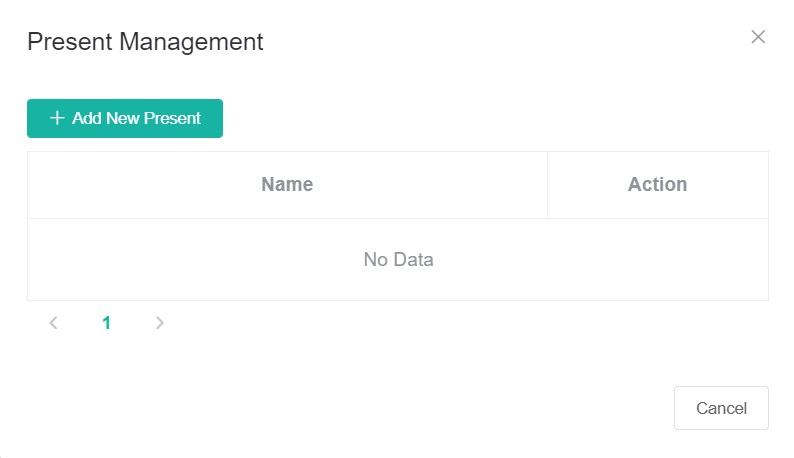

- On the Present Management screen, click the Add New Present button to create a presentation.

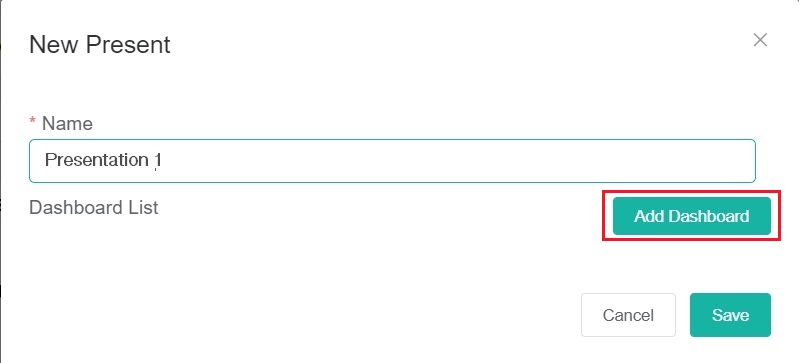

- When the New Present window opens, type the name for your presentation on the Name field, then click the Add Dashboard button.

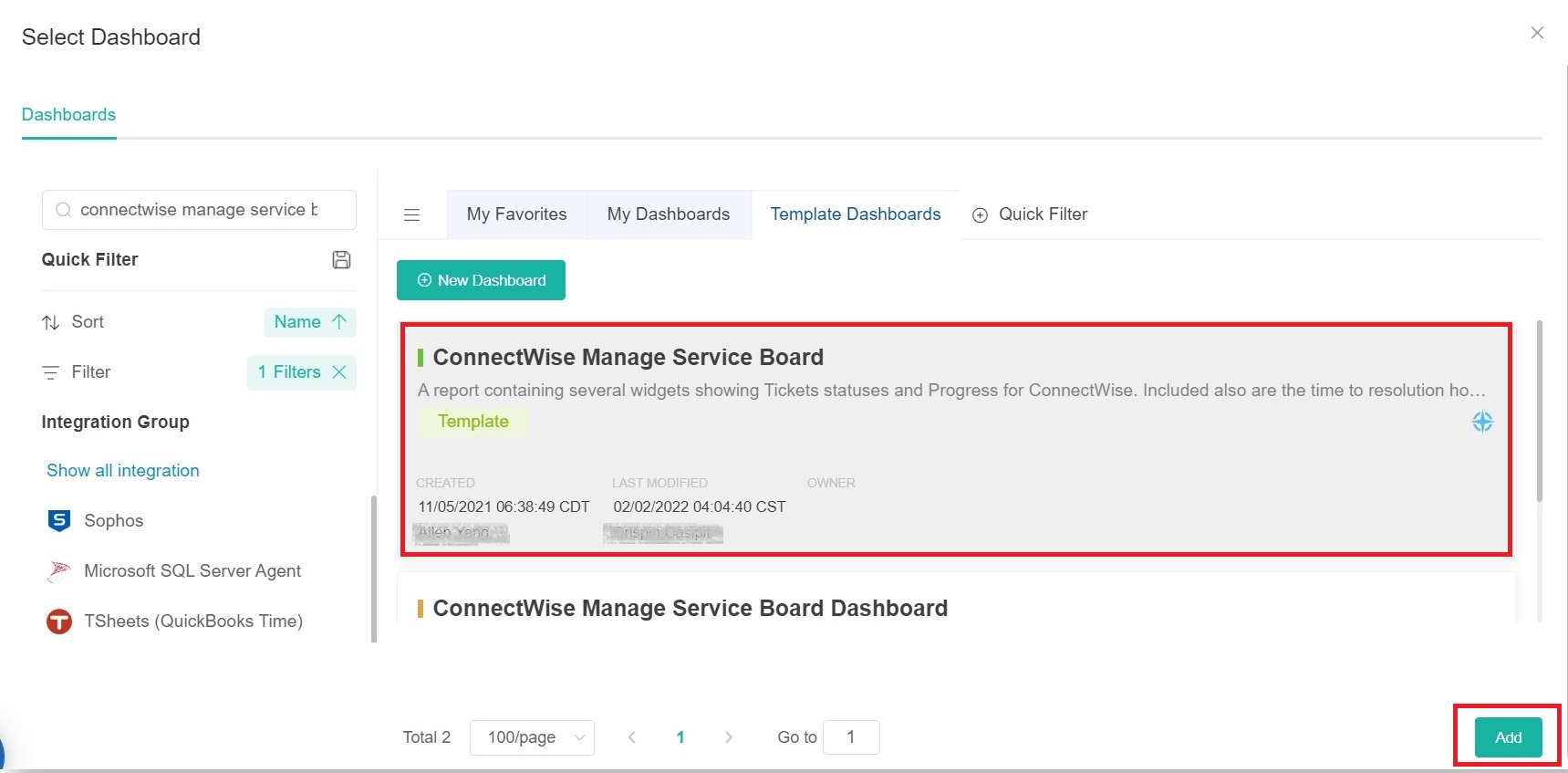

- When the Select Dashboard screen opens, select all the dashboards that you want to view in the rotating sequence and click Add.

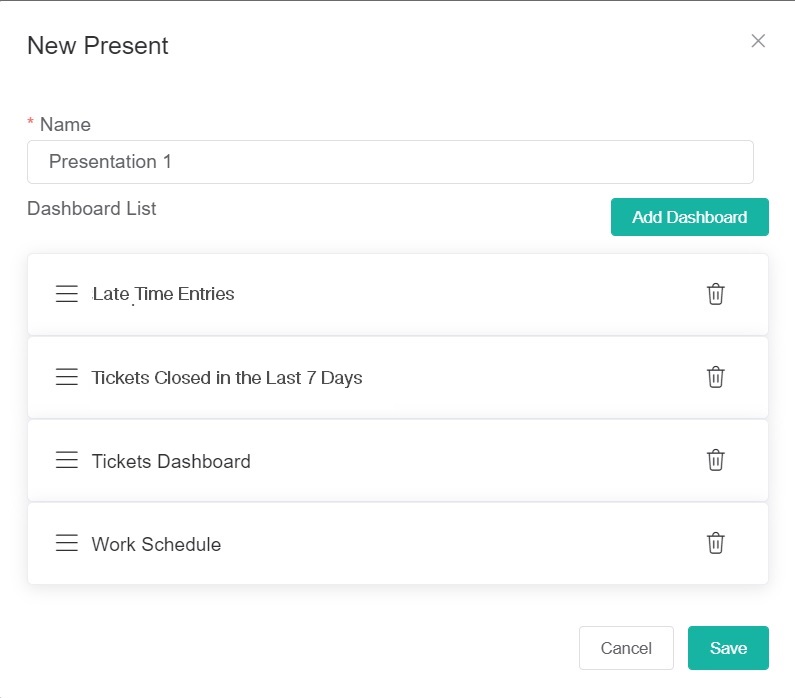

- Verify your selection in the Dashboard List section. Click the Delete icon if you need to remove a dashboard or click Add Dashboard to add more. Once you have verified, click Save.

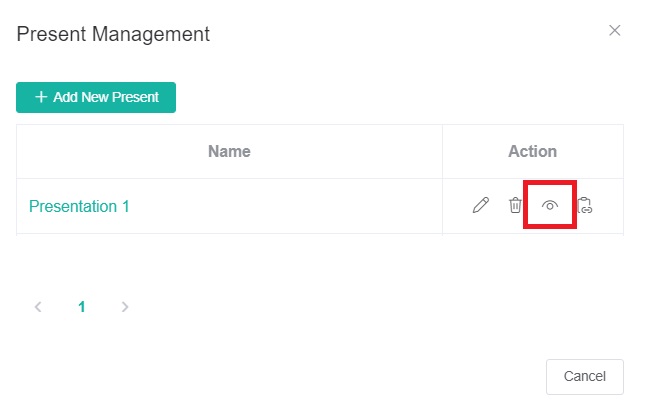

- Once saved, you will be back to the Present Management screen where you will find the rotating dashboards that you have created. To view your rotating dashboard, click the eye icon under Action.
Editing or deleting a Rotating Dashboard
- Open any of your dashboards. Click the Presentation > Rotate Dashboards.

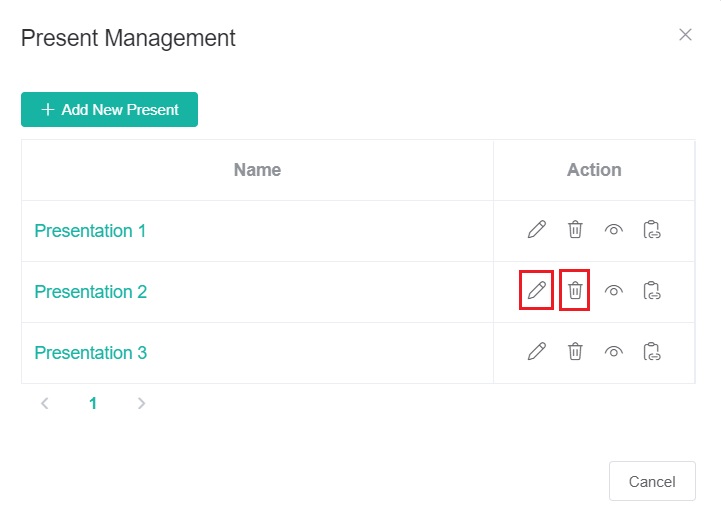

- Click the Edit icon to edit or the Delete icon to delete existing rotating dashboards.
How to use the rotating dashboard view
You can do the following actions on the rotating dashboard view:
- Switch dashboards

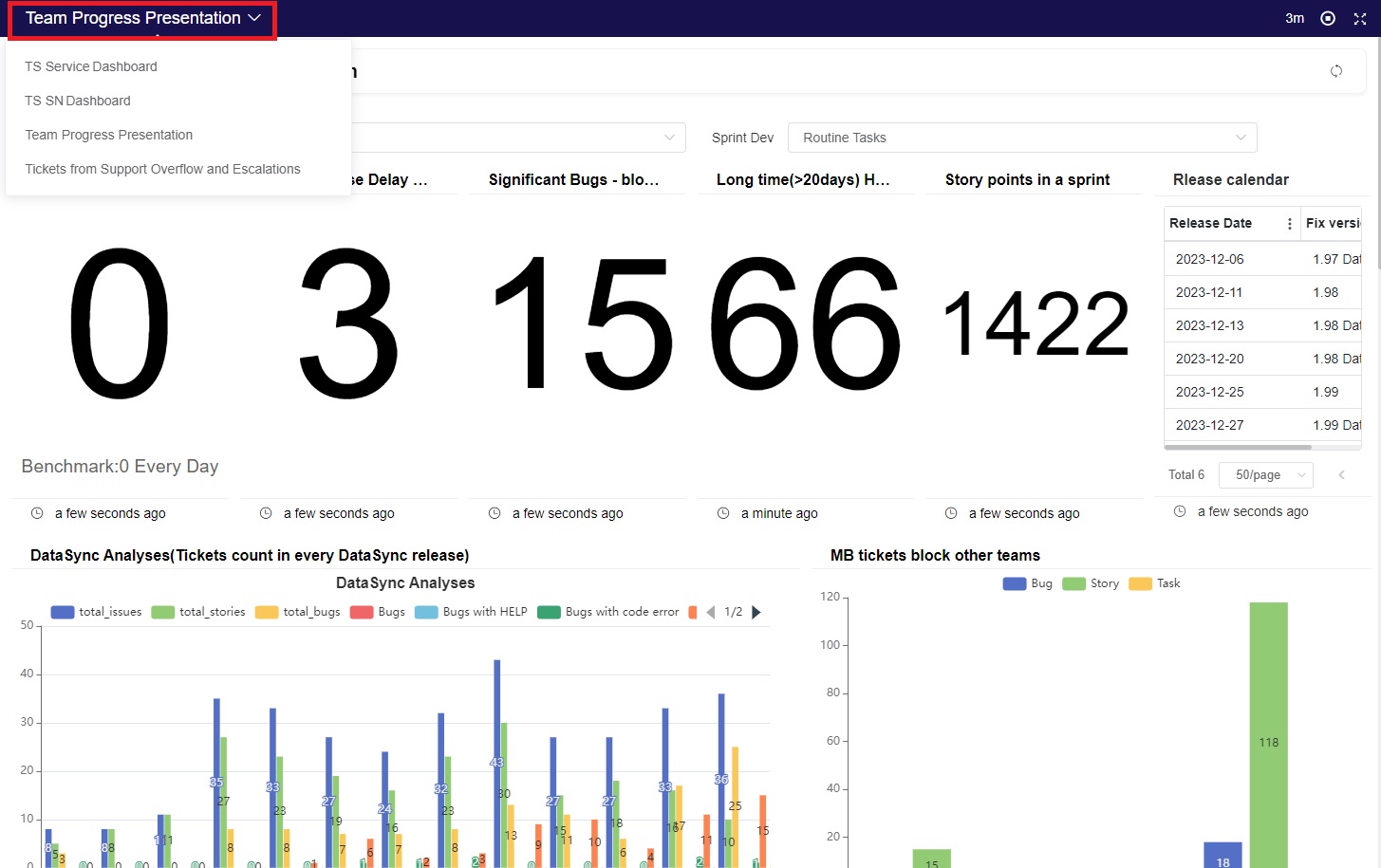

To switch view to the next dashboards or switch back to the previous ones in the loop, click the dashboards dropdown list and select the dashboard to display.

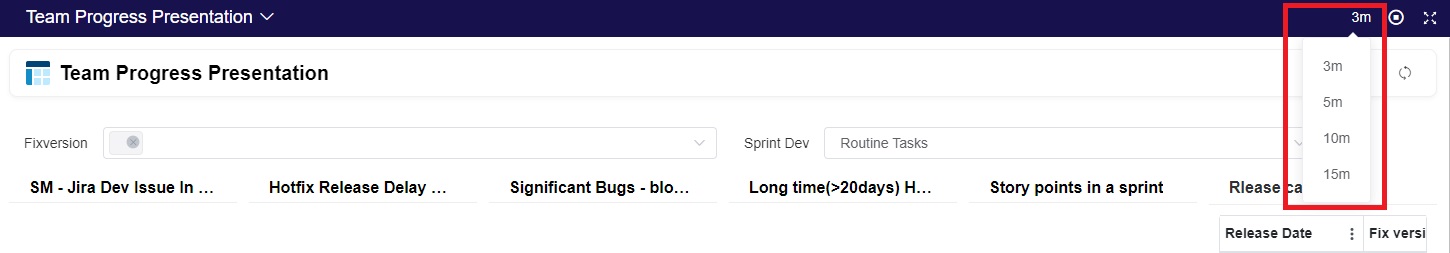

- Change the display interval
The display interval of the dashboards are modified on the upper right section of the screen. Click on the number and select 3m, 5m, 10m, and 15m from the dropdown list. The options are in minutes.
- Stop the rotation

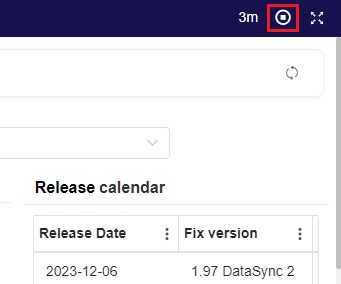

You can opt to stop the dashboard rotation to display only one dashboard. Do this by clicking the stop button on the upper right corner pf the screen.
- View the presentation in full screen mode

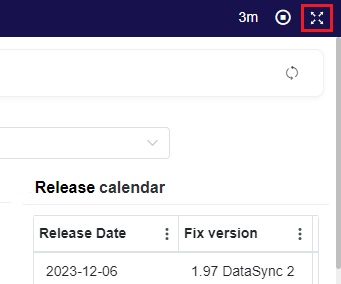

Click the full screen icon to view the dashboards in full screen.
